Booth Martin; Contract Programming, Inc.

Visual Age RPG program examples:

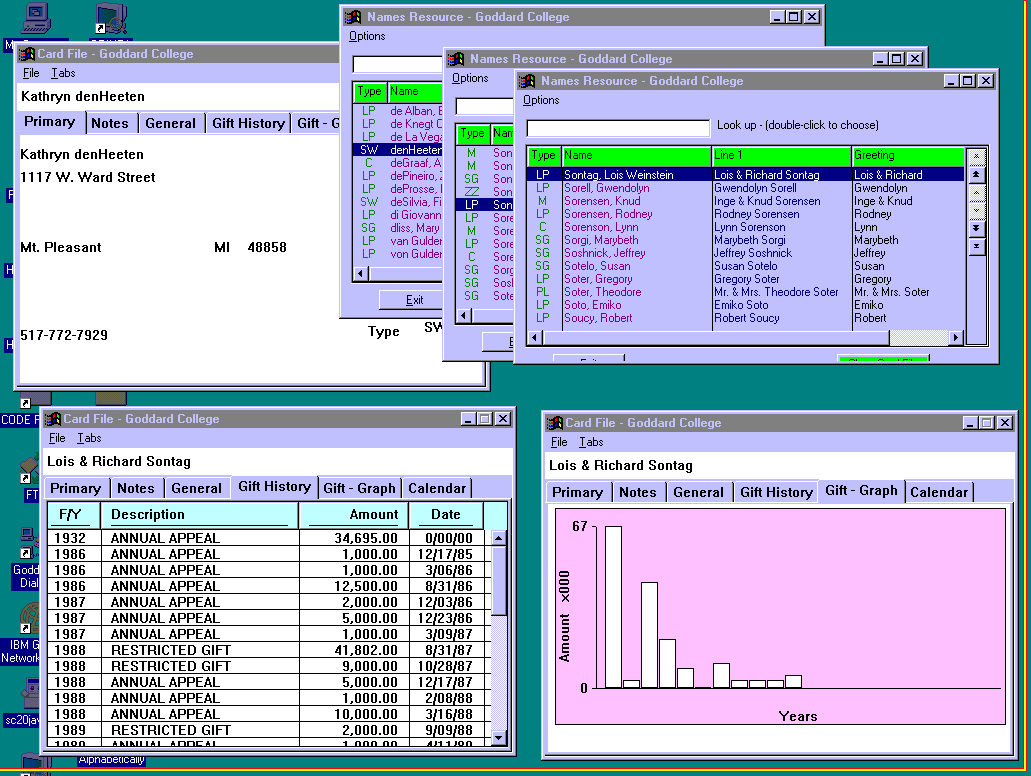

A Notebook example

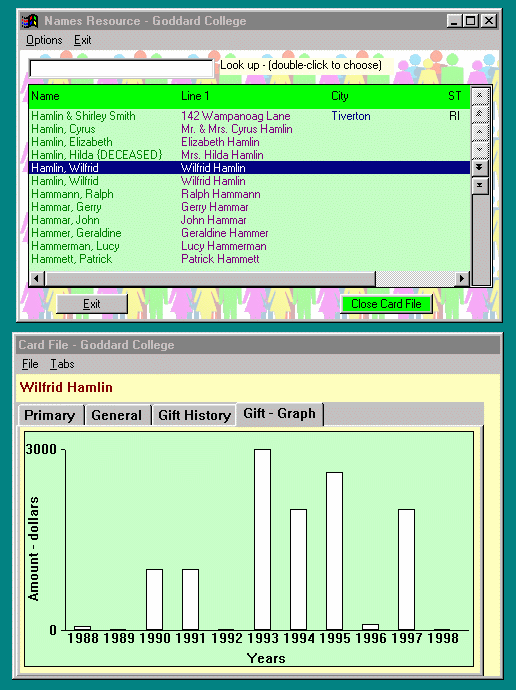

The code for the Card File panel
     H
      *
     FGMNAME1   IF   E           K DISK    REMOTE
     FDVTRAN9   IF   E           K DISK    REMOTE
     FCOMMENT1  UF A E           K DISK    REMOTE
     D DATEISO         S               D   DATFMT(*ISO)
     DARX              S              4A   DIM(11)                              years
     DAR$              S              7S 0 DIM(11)                              year's gift total
      *********************************************************************
     C     FILLNB        BEGSR
     C     KEY01         KLIST
     C                   KFLD                    K1                6 0
     C                   KFLD                    K2                2 0
      * Get the "02" record information:
     C                   Z-ADD     02            K2
     C     KEY01         CHAIN     RGMNAME1                           54
     C     'GNTYPE'      SETATR    GNTYPE        'text'
     C     'GNNAME'      SETATR    GNNAME        'text'
     C     'GNLIN1'      SETATR    GNLIN1        'text'
     C     'GNLIN2'      SETATR    GNLIN2        'text'
     C     'GNLIN3'      SETATR    GNLIN3        'text'
     C     'GNCITY'      SETATR    GNCITY        'text'
     C     'GNSTAT'      SETATR    GNSTAT        'text'
     C     'GNZIP'       SETATR    GNZIP         'text'
     C     'GNZIPO'      SETATR    GNZIPO        'text'
     C     'GNPHON'      SETATR    GNPHON        'text'
      * Put the value into the label on the screen
     C     'STXNAME'     SETATR    GNNAME        'label'
      * Get the "01" record information:
     C                   Z-ADD     01            K2
     C     KEY01         CHAIN     RGMNAME1                           54
     C     'SSN'         SETATR    GNLIN3        'text'
     C* Fill the Gift pages
     C                   EXSR      FILLGIFT
     C                   EXSR      GRASR
     C* Clear the Notes page:
     C     'MLE000007C'  SETATR    *BLANKS       'text'
     C                   EXSR      FILLCOMMENT
     C                   ENDSR
      *********************************************************************
     C     GRA0000049    BEGACT    CREATE        MAIN
      * Fill array x-axis for graph:
     C     *YEAR         SUB       10            YEAR              4 0
     C                   Z-ADD     1             I                 2 0
     C     I             DOWLE     11
     C                   MOVE      YEAR          ARX(I)
     C                   ADD       1             YEAR
     C                   ADD       1             I
     C                   END
     C                   EXSR      GRASR
     C                   ENDACT
      *********************************************************************
     C     BIGSR         BEGSR
     C     'Amount'      CAT       'x000':3      YLABEL           20
     C     'GRA0000049'  SETATR    YLABEL        'YAxisLabel'
     C     'GRA0000049'  SETATR    2             'COLORAREA'
     C     'GRA0000049'  SETATR    '255:200:255' 'COLORMIX'
     C                   Z-ADD     1             I                 2 0
 B2  C     I             DOWLE     11
     C                   DIV (H)   1000          AR$(I)
     C                   ADD       1             I
     C                   END
     C                   ENDSR
      *********************************************************************
     C     GRASR         BEGSR
     C     SHOWGRAPH     IFEQ      'YES'
     C     'GRA0000049'  SETATR    1             'STARTNEW'
      * don't show if no $.$$
     C                   XFOOT     AR$           TOTAL            10 0
 B1  C     TOTAL         IFLE      *ZEROS
     C     'GRA0000049'  SETATR    0             'visible'
 X1  C                   ELSE
     C     'GRA0000049'  SETATR    1             'visible'
      * Find range of giving:
     C                   MOVE      *BLANKS       YLABEL
     C                   SETOFF                                       303132
     C                   Z-ADD     1             I                 2 0
 B2  C     I             DOWLE     11
 B3  C                   SELECT
     C     AR$(I)        WHENGE    9000
     C                   MOVE      *ON           *IN30
     C     AR$(I)        WHENGE    25000
     C                   MOVE      *ON           *IN31
     C     AR$(I)        WHENGE    100000
     C                   MOVE      *ON           *IN32
 E3  C                   ENDSL
     C                   ADD       1             I
 E2  C                   END
      * Adjust the array for the number of places shown:
 B2  C                   SELECT
     C     *IN32         WHENEQ    *ON
     C                   EXSR      BIGSR
      *
     C     *IN31         WHENEQ    *ON
     C                   EXSR      BIGSR
      *
     C     *IN30         WHENEQ    *ON
     C                   EXSR      BIGSR
     C                   OTHER
     C     'Amount'      CAT       '- dollars':1 YLABEL
     C     'GRA0000049'  SETATR    YLABEL        'YAxisLabel'
     C     'GRA0000049'  SETATR    2             'COLORAREA'
     C     'GRA0000049'  SETATR    '200:255:200' 'COLORMIX'
 E2  C                   ENDSL
     C                   Z-ADD     1             I                 2 0
 B2  C     I             DOWLE     11
      * Set graph:
     C                   MOVE      ARX(I)        YEARA             4
     C     'GRA0000049'  SETATR    I             'DATAPOINT'
     C     'GRA0000049'  SETATR    YEARA         'BARLABEL'
     C     'GRA0000049'  SETATR    AR$(I)        'DATAVALUE'
     C     'GRA0000049'  SETATR    9             'COLORAREA'
     C     'GRA0000049'  SETATR    '255:255:255' 'COLORMIX'
     C                   ADD       1             I
 E2  C                   END
     C     'GRA0000049'  SETATR    1             'usedata'
 E1  C                   ENDIF
      *
     C                   ENDIF
     C                   ENDSR
      **
      *********************************************************************
     C     MAIN          BEGACT    CREATE        MAIN
     C     *ENTRY        PLIST
     C                   PARM                    TMP6              6
     C                   MOVE      TMP6          K1
     C                   EXSR      FILLNB
     C                   ENDACT
      *********************************************************************
     C     CRF0000034    BEGACT    NOTIFY        MAIN
     C     'CRF0000034'  GETATR    'attrvalue'   TMPCRF            6    99
     C                   MOVE      TMPCRF        K1
     C                   EXSR      FILLNB
      *
     C                   ENDACT
      *********************************************************************
     C     FILLAMOUNT    BEGSR
     C* Make a positive number to display:
     C     DVTRSG        MULT      DVTRAM        DVTRAM
     C     DVTRAM        MULT      -1            DVTRAM
     C* Fill array for graph:
     C                   Z-ADD     1             I
     C     DVTRFY        LOOKUP    ARX(I)                                 99
     C   99              ADD       DVTRAM        AR$(I)
     C*  Fix date for display:
     C                   MOVE      DVTRDT        DVTRD6
     C     *YMD          TEST(D)                 DVTRD6                 98
 B3  C     *IN98         IFEQ      *OFF
     C     *YMD          MOVE      DVTRD6        DATEISO
     C     *MDY          MOVE      DATEISO       DVTRD6            6 0
 X3  C                   ELSE
     C                   Z-ADD     *ZEROS        DVTRD6
 E3  C                   END
     C                   WRITE     SFLGIFTS
 B3  C     DVTRAM        IFLT      *ZEROS
     C     'SFLGIFTS'    SETATR    SINDEX        'Index'
     C     'SFLGIFTS'    SETATR    3             'ColNumber'
     C     'SFLGIFTS'    SETATR    *RED          'CellFGClr'
 X3  C                   ELSE
     C     'SFLGIFTS'    SETATR    3             'ColNumber'
     C     'SFLGIFTS'    SETATR    *BLACK        'CellFGClr'
 E3  C                   END
     C                   ADD       1             SINDEX
     C
     C                   ENDSR
      *********************************************************************
     C     FILLGIFT      BEGSR
     C     'MNI_H'       GETATR    'checked'     TMP               1 0
 B0  C     TMP           IFEQ      1
      *
     C                   CLEAR                   SFLGIFTS
     C                   Z-ADD     *ZEROS        AR$
     C                   Z-ADD     1             SINDEX            3 0
     C     K1            SETLL     RDVTRAN9
     C     K1            READE     RDVTRAN9                             9999
      *
 B1  C     *IN99         DOWEQ     *OFF
 B2  C     DVTRDC        IFEQ      'C'
 -2  C     DVTRDC        OREQ      'D'
     C                   EXSR      FILLAMOUNT
 E2  C                   ENDIF
     C* Get next record, see if the loop is done yet.
     C     K1            READE     RDVTRAN9                             9999
 E1  C                   ENDDO
      *
 E0  C                   ENDIF
     C                   ENDSR
      *********************************************************************
     C     MNI_P         BEGACT    MENUSELECT    MAIN
     C     'MNI_P'       GETATR    'checked'     TMP               1 0
     C     TMP           IFEQ      1
     C     'MNI_P'       SETATR    0             'checked'
     C                   ELSE
     C     'MNI_P'       SETATR    1             'checked'
     C                   END
     C                   ENDACT
      *********************************************************************
      *
     C     MNI_H         BEGACT    MENUSELECT    MAIN
     C     'MNI_H'       GETATR    'checked'     TMP
     C     TMP           IFEQ      1
     C     'MNI_H'       SETATR    0             'checked'
     C                   ELSE
     C     'MNI_H'       SETATR    1             'checked'
     C                   END
      *
     C                   ENDACT
      *********************************************************************
     C     MNI_R         BEGACT    MENUSELECT    MAIN
      *
     C     'MNI_R'       GETATR    'checked'     TMP               1 0
     C     TMP           IFEQ      1
     C     'MNI_R'       SETATR    0             'checked'
     C     'GRA0000049'  SETATR    0             'visible'
     C                   MOVE      'NO '         SHOWGRAPH         3
     C                   ELSE
     C     'MNI_R'       SETATR    1             'checked'
     C     'GRA0000049'  SETATR    1             'visible'
     C                   MOVE      'YES'         SHOWGRAPH
     C                   END
      *
     C                   ENDACT
      *********************************************************************
      *
     C     MNIEXIT       BEGACT    MENUSELECT    MAIN
     C                   MOVE      *ON           *INLR
      *
     C                   ENDACT
      *********************************************************************
      *
     C     CRF00025B5    BEGACT    NOTIFY        MAIN
     C     'CRF00025B5'  GETATR    'attrvalue'   TMPCRF            6    99
     C                   MOVE      TMPCRF        K1
     C                   EXSR      FILLNB
      *
     C                   ENDACT
      *********************************************************************
      *
     C     MNI_R         BEGACT    CREATE        MAIN
     C                   MOVE      'YES'         SHOWGRAPH
      *
     C                   ENDACT
      *********************************************************************
      *
     C     CAN000002F    BEGACT    CREATE        MAIN
      *
     C                   ENDACT
      *********************************************************************
      *
     C     CAL000007B    BEGACT    CREATE        MAIN
      *
     C                   ENDACT
      *********************************************************************
     C     FILLCOMMENT   BEGSR
     C                   MOVE      'SO'          COTYPE
     C     KEYCOMMENT    SETLL     RCOMMENT
     C     KEYCOMMENT    READE     RCOMMENT                             9999
     C     *IN99         IFEQ      *OFF
     C     'MLE000007C'  SETATR    COMMENT       'text'
     C                   END
     C                   ENDSR
      *********************************************************************
     C     WRITECOMMENT  BEGSR
     C     'MLE000007C'  GETATR    'text'        TMP2096        2096
     C                   Z-ADD     GNIDNO        COIDNO
     C                   MOVE      'SO'          COTYPE
     C                   MOVE      *DATE         COTIKL

     C     KEYCOMMENT    SETLL     RCOMMENT
     C     KEYCOMMENT    READE     RCOMMENT                             9999
     C                   MOVE      TMP2096       COMMENT
     C     *IN99         IFEQ      *OFF
      * If the record found, and notebook not blank, update it.
     C     COMMENT       IFNE      *BLANKS
     C                   UPDATE    RCOMMENT
     C                   ELSE
      * If the record found, and notebook is  blank, delete it.
     C                   DELETE    RCOMMENT
     C                   END
     C                   ELSE
      * If the record not found, write it.
     C     COMMENT       IFNE      *BLANKS
     C                   WRITE     RCOMMENT
     C                   END
     C                   END
     C                   ENDSR
      *********************************************************************
     C     MLE000007C    BEGACT    CREATE        MAIN
     C     KEYCOMMENT    KLIST
     C                   KFLD                    GNIDNO
     C                   KFLD                    COTYPE
     C                   EXSR      FILLCOMMENT
      *
     C                   ENDACT
      *********************************************************************
      *
     C     PSB000007E    BEGACT    PRESS         MAIN
     C                   EXSR      WRITECOMMENT
      *
     C                   ENDACT
      *********************************************************************
      *
     C     CRF0000080    BEGACT    NOTIFY        MAIN
      *
     C     'CRF0000080'  GETATR    'attrvalue'   TMPCRF            6    99
     C                   MOVE      TMPCRF        K1
     C                   EXSR      FILLNB
      *
     C                   ENDACT
      *********************************************************************
      *                                                                   *
      * Window . . :                                                      *
      *                                                                   *
      * Part . . . :                                                      *
      *                                                                   *
      * Event  . . :                                                      *
      *                                                                   *
      * Description:                                                      *
      *                                                                   *
      * Change activity:                                                  *
      *                                                                   *
      * Who  Date    Flag  Description                                    *
      * ---  ------  ----  ---------------------------------------------- *
      *                                                                   *
      *********************************************************************
      *
     C     CRF0001E71    BEGACT    NOTIFY        MAIN
      *
     C                   ENDACT
      *********************************************************************
      *                                                                   *
      * Window . . :                                                      *
      *                                                                   *
      * Part . . . :                                                      *
      *                                                                   *
      * Event  . . :                                                      *
      *                                                                   *
      * Description:                                                      *
      *                                                                   *
      * Change activity:                                                  *
      *                                                                   *
      * Who  Date    Flag  Description                                    *
      * ---  ------  ----  ---------------------------------------------- *
      *                                                                   *
      *********************************************************************
      *
     C     CRF0007E36    BEGACT    NOTIFY        MAIN
      *
     C                   ENDACT
      *********************************************************************

For comments or questions leave e-mail
View my resume
Top of page
Home page
Another example
